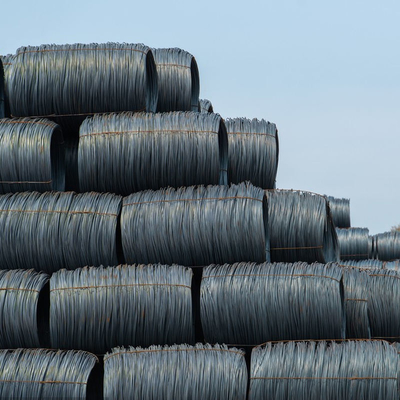

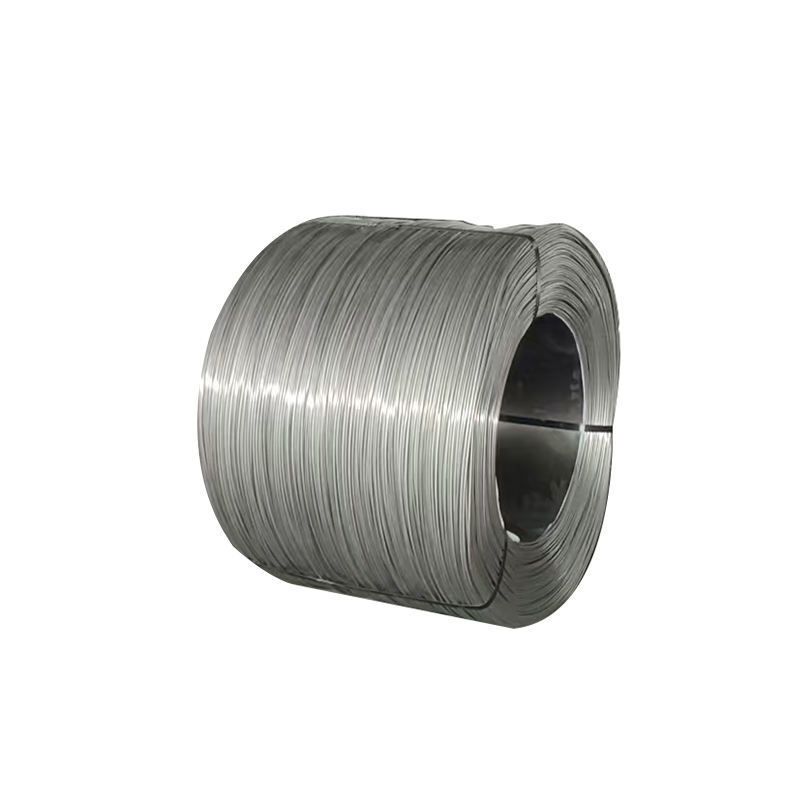

Name: High Carbon Low Carbon Steel Wire Rod Q195 9.5mm Aluminium Wire Hot Rolled Non Alloy For Rod
Brand: Luoyang Sanwu Cable Co., Ltd.,
SKU: Алюминиевая заготовка для проволоки
Price: 1.99 USD
Availability: InStock

Главная страница Продукция Алюминиевая заготовка для проволоки

High Carbon Low Carbon Steel Wire Rod Q195 9.5mm Aluminium Wire Hot Rolled Non Alloy For Rod

Подробная информация о продукте:

Место происхождения:	Лоян, Китай
Фирменное наименование:	Luoyang Sanwu
Сертификация:	IS09001, IS014001,OHSAS18001
Номер модели:	Алюминиевая заготовка для проволоки

Оплата и доставка Условия:

Количество мин заказа:	20tons
Цена:	Подлежит обсуждению
Упаковывая детали:	Паллет экспорта стандартный деревянный, вьюрок, или согласно запросу клиентов
Время доставки:	7-15 дней
Условия оплаты:	T/T, L/C.
Поставка способности:	9000 тонн в месяц

контакт

Подробное описание продукта

Имя:	Алюминиевая заготовка для проволоки	Приложение:	Растворы для кабелей и проводов
Емкость:	300tons в день	Диаметр:	8.0mm.9.5mm, 12mm
Использование:	AAC AAAC ACSR
Выделить:	Q195 high carbon steel wire rod , 9.5mm hot rolled aluminium wire , non alloy steel wire rod

High Carbon Low Carbon Steel Wire Rod Q195 9.5mm Aluminium Wire Hot Rolled Non Alloy

Aluminium wire rod is an excellent raw material for high-voltage cable and wire producers. With our special hot-rolling technology we can process a wide range of sizes and alloys, delivering fine-grained structures with excellent formability.

We offering full customization, design customization, and sample customization services, holds product certifications, with a positive review rate of 98.3%.

Quick Details

Specifications : ASTM B211, AMS 4120, AMS 4339, AMS-QQ-A-225/6, ASTM B221, AMS 4152, AMS 4164, AMS 4165, AMS-QQ-A-200/3

Standard : ASTM, ASME

Surface: Bright, Polish & Black

Aluminium Round Bar: Temper:O, H12, H14, H16, H18, H22, H24, H26, H32, H112

Length :1M-6M,12M & Required Length

Diameter : 6.00 mm to 600.0mm

Grade : 1060,2014,2023,2a12,2024,5083, 5086, 6061,6063,6082,7075,7a04

Product Description

Basic Info.

Model NO.

AY16-5-102

Surface Treatment

Oxidized

Alloy

Non-alloy

Al(Min)

90-99.999%

Yield(≥MPa)

389, 400

Length

as Customers Require

Type

Aluminum Rod

Transport Package

as Your Need

Specification

IEC, ASTM, DIN, BS VDE, GOST, SAS, ISO, CCC, CQC

Trademark

Luoyang Sanwu

Origin

Henan, China

HS Code

76051100

Production Capacity

9000 Ton/Tons Per Month

TABLE 1-Textile Shield for Power Cable for Aluminum Rod

Purity	Chemical Composition%
	AL Minimum	Foreign Content,Maximum
	AL Minimum	Si	Fe	Cu	V+Cr+Mn+Ti	Other
Al99.60E	99.6	0.08	0.20	0.005	0.01	0.3

Type	Tensile Strength,N/mm²	Fracture Toughness%,Min	Electrical Resistance Ωmm²/m 20,Max
A	60-80	25	0.02755
A2	80-110	12	0.02785
A4	95-115	10	0.02801
A6	110-130	8	0.02801
A8	120-150	6	0.02801

TABLE 2- Tensile Property Limits for 1350mm Aluminum Rod

Temper	Tensile Strength
	Ks j	M pa
1350-O	8.5-14.0	59-97
1350-H12 and-H22	12.0-17.0	83-117
1350-H14 and-H24	15.0-20.0	103-138
1350-H16 and-H26	17.0-22.0	117-152

TABLE 3- Electrical Resistivity Limits for Aluninium wire

Temper	Resistivity	Equivalent Volume Conductivity,%
	Max.Ω.mm2/m	IACS Min.
1350-O	0.027899	61.8
1350-H12 and-H22	0.028035	61.5
1350-H14 and-H24	0.028080	61.4
1350-H16 and-H26	0.028126	61.3

Inspection:
To make sure customer receive the good quality goods,100% inspection to be done before delivery.

(1) It is mainly used for drawing the core of wires and cables.
(2) The surface of the rod is clean, smooth and seamless.
(3) Coil weight: large coil 2000kg, small coil: 300--2000kg.

Packing & Shipping

Packing Method of 1350 Type,ISO Certificate Aluminum Wire Rod 9.5mm for Wire Drawing:

1.The aluminum rod is usually packed with wooden drum.

2.The aluminum rod will pack according to customer's requirement.

3.Delivery within 7-15 working days after receive your payment.

4.Supply and ship on time.

Our Company

FAQ

Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C
